- 4 line LCD to display flowrate, totalizer signal condition, etc.
- The flowmeter is designed with a high accuracy of +/-1.0%
- Small sized (206 * 100 * 35 mm) light-weight (600 g)
- Wide range, Velocities (0.01~+/-32 m/s)
- Ni-MH Battery lasts for over 10 hours of continuous operation
- Maximum temperature 160 °C
- Transducers for pipe sizes from 15-6000 mm (1/2″-240″)
- Built-in magnet in transducers, no need for steady tool on metal pipe
- Data logger which records flowrate, date, total flow, signal condition etc.
- Response time less than 1 second

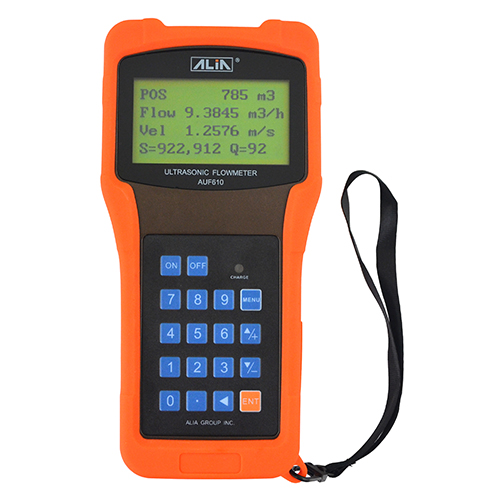

Portable Ultrasonic Flowmeter
The AUF610 Series is a portable transit-time ultrasonic flowmeter with clamp-on transducers for non-invasive liquid measurement. Based on microprocessor and programmable flow measurement techniques, the process flow can be accurately measured without interrupting the flow and with low installation costs.
Related products
-

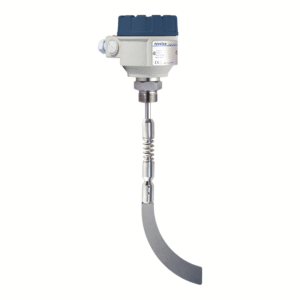

Flow & Level InstrumentsRotary Paddle Level Switches
-
