Water Meter

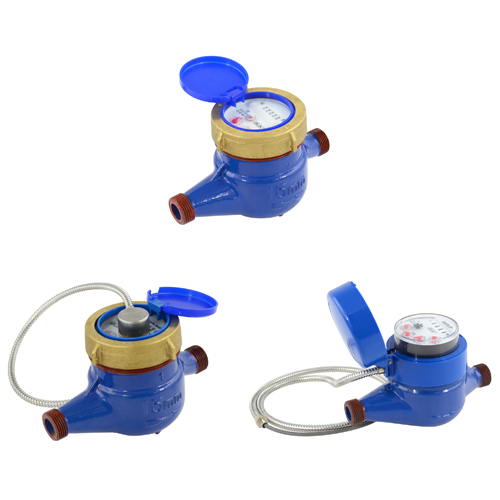

The AWF400 Series is a multi-jet wing dry type water meter. It features of accurate measurement, long service life and high repeatability, which is widely used in family, industry and agriculture and so on. With simple structures, the installation is convenient. It can directly read the totalizer, with optional RS485 output or reed switch pulse output.

Category: Flow & Level Instruments Brand: Alia Technology LLC

Description

Multi-jet dry type water meter
With standard threaded connection
Max. medium temperature up to 50 °C
Available with reed switch pulse output or RS485 output
Magnetic drive dry-type structure, simple and clear display
4 or 5 digit oversized character wheel display
Low pressure loss and high flow capacity, suitable for water supply line
With a highly wear-resistant bearing system, enhancing product’s stability, reliability and maximum flow capacity
